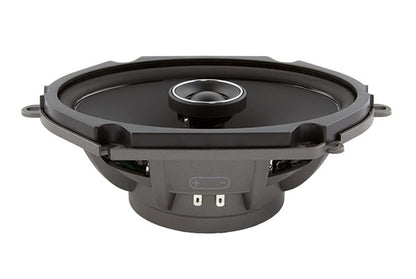

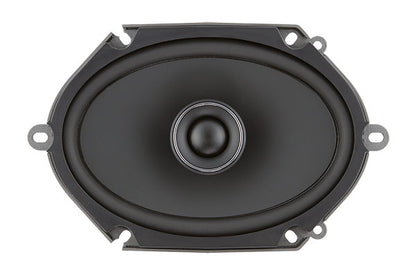

- Designed as an easily installed premium upgrade, the GS682 includes a proprietary injection-molded ABS and fiberglass vented basket with mounting tabs to fit many factory 6x8" and 5x7" locations. Ease of installation is ensured with a low profile 1" fabric dome neodymium tweeter that is sure to fit under factory grilles. The kit includes a removable gasket for mounting the speaker under the baffle.
- The tweeter faceplate includes a small waveguide designed to boost the tweeter’s low frequencies and ensure a smooth transition to the midrange. That transition is also controlled by a 12dB/octave high pass filter and 6dB/octave low pass filter. The entire crossover network is mounted to a PC board integrated into the basket, which also secures the terminals.
- The GS682 woofer includes a 1" copper voice coil wound on a Kapton® former for superior power handling.
Features:
- Injection molded ABS plastic and fiberglass vented basket
- Parabolic polypropylene cone
- Nitrile butadiene rubber surround
- 1" (25mm) copper voice coil on Kapton® former
- Flat progressive Nomex® Spider
- Ferrite magnet
- 1" (25mm) fabric dome neodymium tweeter
- Tweeter includes reflection absorbing and diffusing foam pad
- Low-profile tweeter waveguide helps to provide smooth transition to the midrange
- Fast-on terminals secured with integrated PC board
- Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)
Specs:
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 70 W (with recommended crossover)
- Peak Power Handling: 200 W (with recommended crossover)
- Frequency Response: 47 Hz - 20 kHz
- Sensitivity (2.83 V/1 M): 89 dB
- Recommended Amplifier RMS Power Range: 15 W - 75 W
