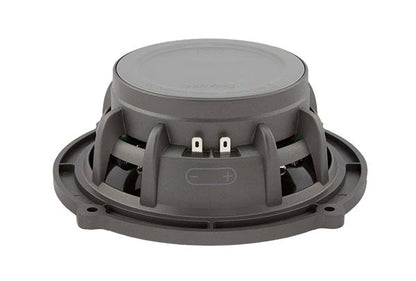

Audiofrog GS62
Sale price$504.95Regular price
$600.00
- Designed as an easily installed premium upgrade, the GS62 includes a proprietary injection-molded ABS and fiberglass vented basket. Ease of installation is ensured with a 1" fabric dome neodymium tweeter that extends a mere 2mm above the surround-sure to fit under factory grilles.
- The tweeter faceplate includes a small waveguide designed to boost the tweeter’s low frequencies and ensure a smooth transition to the midrange. That transition is also controlled by a 12dB/octave high pass filter and 6dB/octave low pass filter. The entire crossover network is mounted to a PC board integrated into the basket, which also secures the terminals.
- The GS62 woofer includes a 1" copper voice coil wound on a Kapton® former for superior power handling. A multiadapter is included in the kit for easy installation in a variety of factory locations.
Features:
- Injection molded ABS plastic and fiberglass vented basket
- Parabolic polypropylene cone
- Nitrile butadiene rubber rurround
- 1" (25mm) copper voice coil on Kapton® former
- Flat progressive Nomex® spider
- Ferrite magnet
- 1" (25mm) fabric dome neodymium tweeter
- Tweeter includes reflection absorbing and diffusing foam pad
- Low-profile tweeter waveguide helps to provide smooth transition to the midrange
- Fast-on terminals secured with integrated PC board
- Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)
- Grille and multiadapter included
Specs:
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 70 W (with recommended crossover)
- Peak Power Handling: 200 W (with recommended crossover)
- Frequency Response: 50 Hz - 20 kHz
- Sensitivity (2.83 V/1 M): 89 dB
- Recommended Amplifier RMS Power Range: 15 W - 75 W
