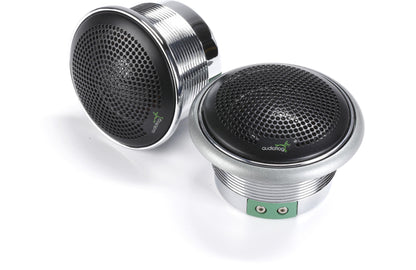

Audiofrog GB15
Sale price$699.99Regular price
$800.00
- Designed primarily for use with the GB60 as the ultimate 2-way system for kick panel or door installation, the GB15 1-1/2" tweeter provides low distortion and high frequency extension not common in other large tweeters.
- With its lower optimum crossover frequency, the GB15 is a perfect match for the GB60's high frequency response. The unique installation kit makes beautiful custom installation a breeze and provides several options for behind-the-panel mounting in many factory locations.
Features:

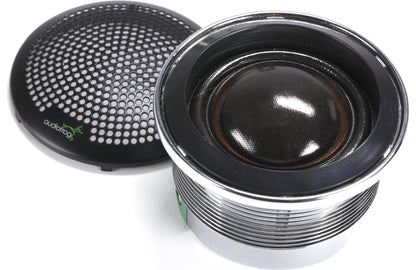

- 1-1/2" (38 mm) Sealed Polyester Diaphragm
- 1-1/2" (38 mm) Voice Coil
- Neodymium motor
- Chrome-Plated Cast Zinc Housing
- Copper Inductance- and Distortion-Reducing Pole Piece Cap
- Screw Terminals

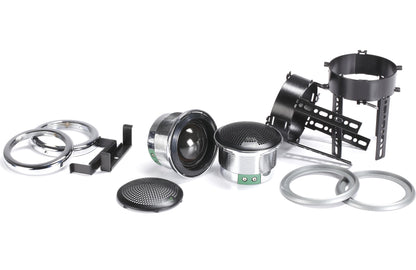

- All-Metal Flush and Behind-the-Panel Mounting Kits Included
- Hex Screws and Tools Included
- Removable and Paintable Grille
- Rub-On Logos Included for Custom Installation
Specs:
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)
- Frequency Response (-3 dB): 1.3 kHz - 20 kHz
- Sensitivity (2.83V / 1M): 90 dB
- Recommended Amplifier RMS Power Range: 20 W - 100 W
- Recommended High Pass Filter Frequency and Slope: = 1.8 kHz, = 12 dB/oct
Out of stock
