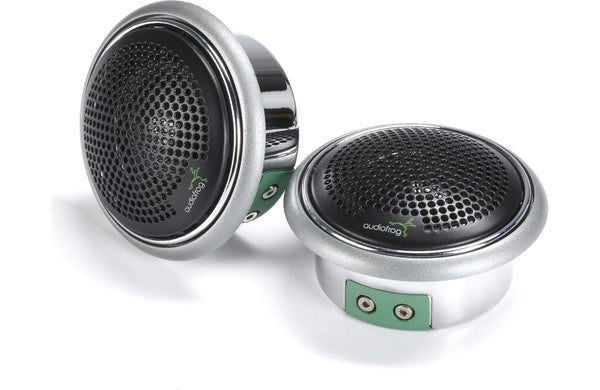

- Designed for installation in factory or custom locations, the GB10 1" tweeter provides low distortion audiophile-grade performance with extended high frequency response. The unique installation kit makes beautiful custom installation a breeze and provides several options for behind-the-panel mounting in factory locations.
Features:
- 1" (25 mm) Sealed Polyester Diaphragm
- 1" (25 mm) Voice Coil
- Neodymium Motor
- Chrome-Plated Cast Zinc Housing
- Copper Inductance- and Distortion-Reducing Pole Piece Cap

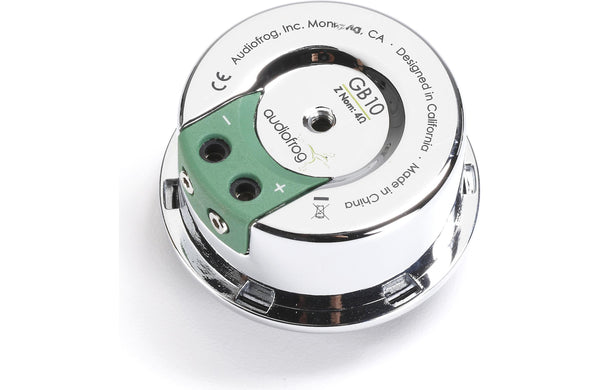

- Screw Terminals

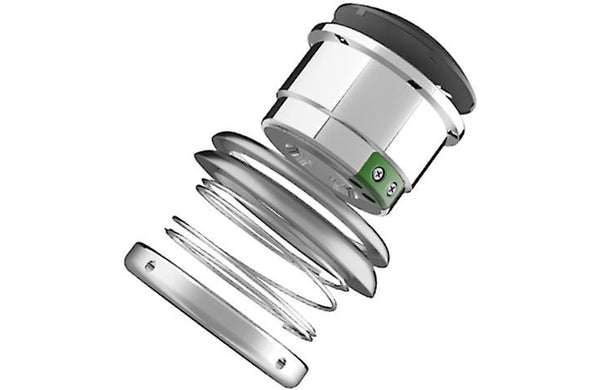

- All-Metal Flush and Behind-the-Panel Mounting Kits Included
- Hex Screws and Tools Included
- Removable and Paintable Grille
- Rub-On Logos Included for Custom Installation
Specs:
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)
- Frequency Response (-3 dB): 1.8 kHz - 24 kHz
- Sensitivity (2.83V / 1M): 90 dB
- Recommended Amplifier RMS Power Range: 20 W - 100 W
- Recommended High Pass Filter Frequency and Slope: = 2.5 kHz, = 12 dB/oct
